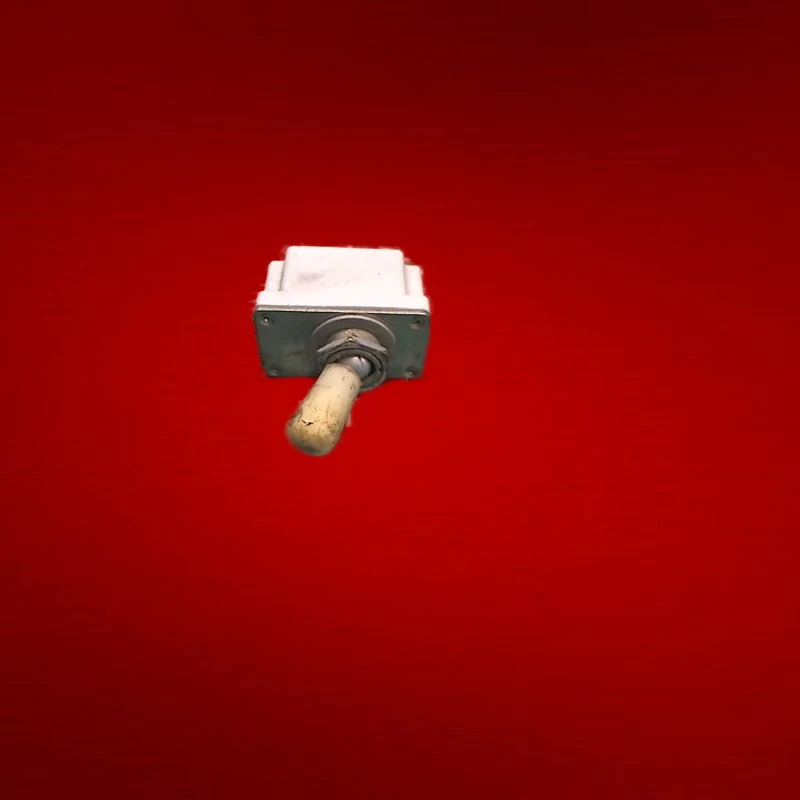

BREAKER (P/N d7270-5-10) - As Removed
P/N: d7270-5-10
Category: Circuit Breakers & Fuses
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| As Removed | 6 Available |
Product Description
The d7270-5-10 is a thermal circuit breaker from the 7270 series designed for aircraft electrical panel protection. This snap-acting breaker provides trip-free overload protection on 28 VDC or 115 VAC, 400 Hz systems, automatically disconnecting power when current exceeds the rated threshold. Qualified to MIL-C-5809 for aviation use, it mounts directly through the panel with a compact profile.
The breaker resets manually after tripping, allowing technicians to restore power once the fault is cleared. Verify the current rating and mounting style against your aircraft's Illustrated Parts Catalog before installation.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the BREAKER (P/N d7270-5-10)?
The d7270-5-10 is a thermal circuit breaker from the 7270 series designed for aircraft electrical panel protection. This snap-acting breaker provides trip-free overload protection on 28 VDC or 115 VAC, 400 Hz systems, automatically disconnecting power when current exceeds the rated threshold.
Is the d7270-5-10 compatible with my aircraft's avionics suite?
Avionics compatibility depends on your aircraft model and existing installation. The BREAKER is available in: As Removed. We recommend checking your aircraft's wiring diagrams and STC documentation, or contact our avionics team for compatibility assistance.
Does the d7270-5-10 come with an 8130-3 airworthiness tag?
Availability of an FAA 8130-3 tag depends on the part condition. Overhauled and repaired units typically include 8130-3 documentation. As-removed units may include a removal tag with trace history. Contact us for specific documentation on the condition you need.
Do you offer bench testing for the d7270-5-10?
We can arrange bench testing through our network of FAA-certified repair stations. Call (904) 998-9101 for testing availability and turnaround times, or submit an RFQ with your specific requirements.
