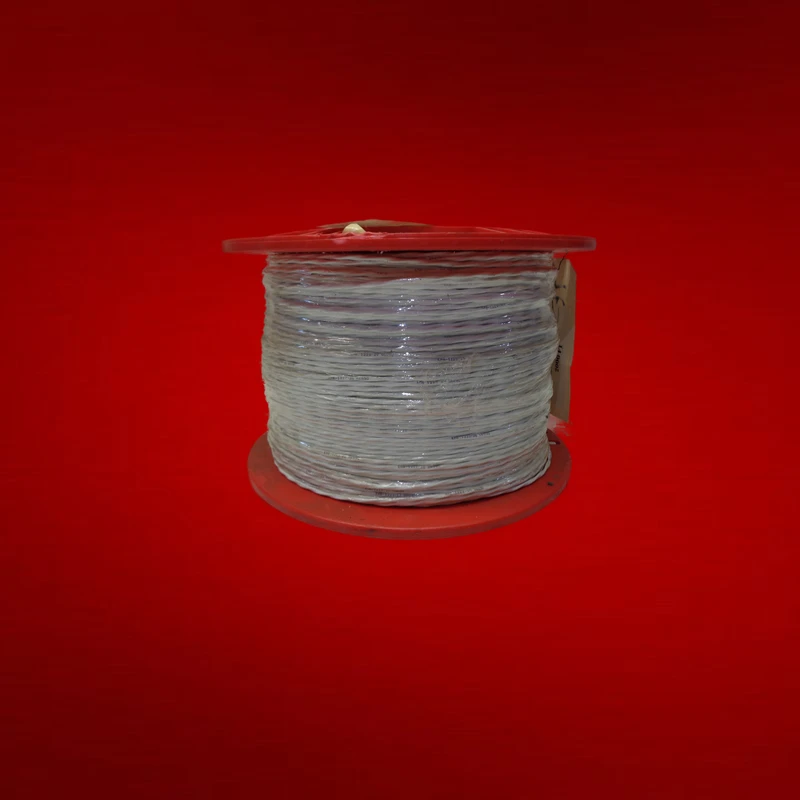

CABLE, ELECTRICAL (P/N emb-1223-20-9) - New Surplus
P/N: emb-1223-20-9
Category: Wiring, Cables & Harnesses
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| New Surplus | 100 Available |
Product Description
The emb-1223-20-9 is an aircraft electrical cable designed for power and signal routing within avionics and subsystem interconnections. This stranded copper conductor cable connects equipment between connectors and devices throughout the aircraft wiring harness. Conforms to SAE AS50881 aerospace vehicle wiring standards for gauge, insulation, and protection requirements.
Installation follows aircraft maintenance manual specifications and FAA AC 43.13-1B acceptable methods, ensuring proper routing, shielding, and strain relief in the electrical system.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the CABLE, ELECTRICAL (P/N emb-1223-20-9)?
The emb-1223-20-9 is an aircraft electrical cable designed for power and signal routing within avionics and subsystem interconnections. This stranded copper conductor cable connects equipment between connectors and devices throughout the aircraft wiring harness.
Is the emb-1223-20-9 compatible with my aircraft's avionics suite?
Avionics compatibility depends on your aircraft model and existing installation. The CABLE, ELECTRICAL is available in: New Surplus. We recommend checking your aircraft's wiring diagrams and STC documentation, or contact our avionics team for compatibility assistance.
Does the emb-1223-20-9 come with an 8130-3 airworthiness tag?
Availability of an FAA 8130-3 tag depends on the part condition. Overhauled and repaired units typically include 8130-3 documentation. As-removed units may include a removal tag with trace history. Contact us for specific documentation on the condition you need.
Do you offer bench testing for the emb-1223-20-9?
We can arrange bench testing through our network of FAA-certified repair stations. Call (904) 998-9101 for testing availability and turnaround times, or submit an RFQ with your specific requirements.
