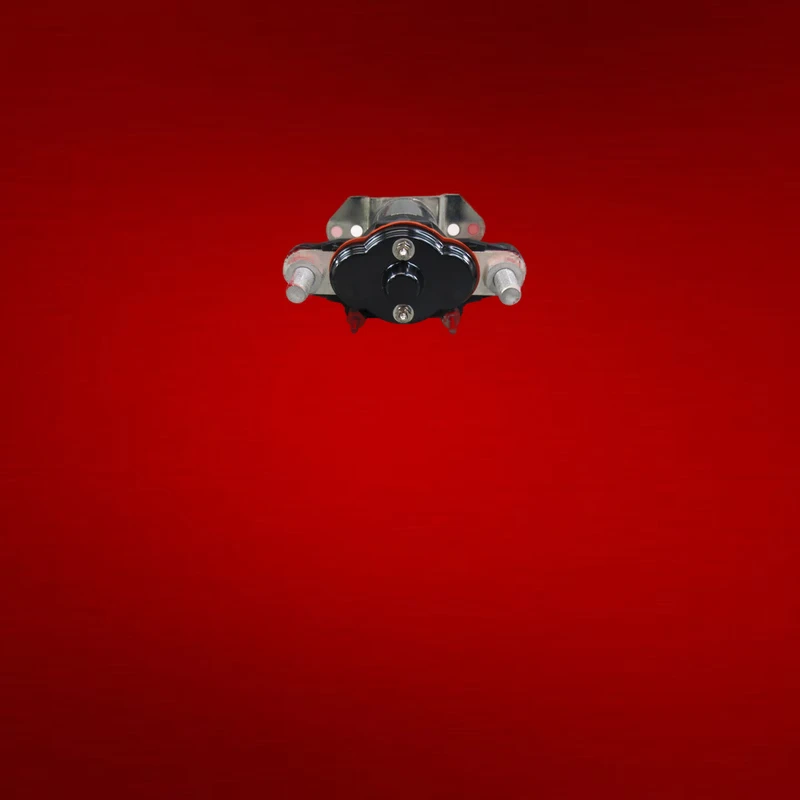

RELAY (P/N ms24171-d1) - Serviceable, As Removed
P/N: ms24171-d1
Category: Relays & Solenoids
Flat-rate shipping. Choose Ground or a faster service at checkout.
Flat-rate shipping covers most parts. If your order turns out to need freight or special handling, we'll contact you with the updated shipping cost before it ships. You can pay the difference or cancel for a full refund. International buyers pay any duties and import taxes.
Available Inventory
| Condition | Price | Stock |
|---|---|---|
| Serviceable | $200.00 | 1 Available |
| As Removed | Quote | 2 Available |
Product Description
The MS24171-D1 is a 28 VDC electromagnetic relay built to MIL-R-6106 military specifications. This high-current switching device controls battery bus loads in aircraft electrical power distribution systems. The relay operates electromagnetically, engaging contacts to route power when energized and releasing when de-energized.
Commonly supplied by Safran Power USA (reference 6041H215), it's identified by NSN 5945-00-660-9315. Installation follows aircraft wiring diagrams and maintenance manuals, with verification against the Illustrated Parts Catalog required before replacement.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the RELAY (P/N ms24171-d1)?
The MS24171-D1 is a 28 VDC electromagnetic relay built to MIL-R-6106 military specifications. This high-current switching device controls battery bus loads in aircraft electrical power distribution systems.
Is the ms24171-d1 compatible with my aircraft's avionics suite?
Avionics compatibility depends on your aircraft model and existing installation. The RELAY is available in: Serviceable, As Removed. We recommend checking your aircraft's wiring diagrams and STC documentation, or contact our avionics team for compatibility assistance.
Does the ms24171-d1 come with an 8130-3 airworthiness tag?
Availability of an FAA 8130-3 tag depends on the part condition. Overhauled and repaired units typically include 8130-3 documentation. As-removed units may include a removal tag with trace history. Contact us for specific documentation on the condition you need.
Do you offer bench testing for the ms24171-d1?
We can arrange bench testing through our network of FAA-certified repair stations. Call (904) 998-9101 for testing availability and turnaround times, or submit an RFQ with your specific requirements.
