ELBOW,TUBE (P/N an833-3d) - New Surplus
P/N: an833-3d
Category: Fittings & Adapters
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| New Surplus | 9 Available |
Product Description

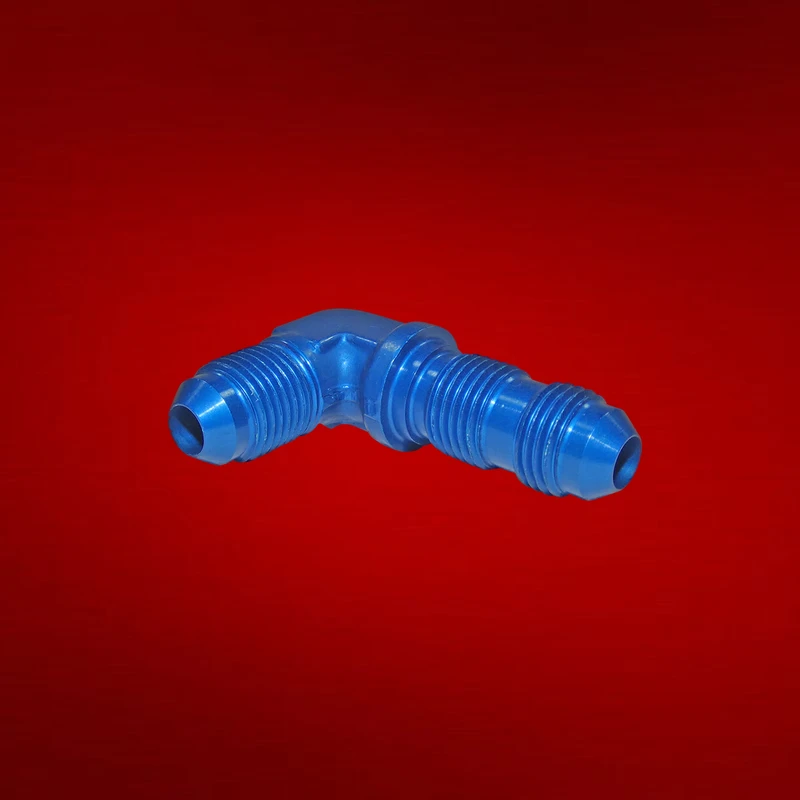

The AN833-3D is a 90-degree bulkhead elbow for aircraft fluid systems with 37-degree flared tube connections on both sides. This fitting passes through structural bulkheads while changing line direction, commonly used in fuel, hydraulic, and oil system routing. Manufactured to AN833 specifications (superseded by AS1038), it features a compact design that maintains system integrity where space is constrained.
Installation requires torquing per the aircraft maintenance manual to ensure leak-free operation under pressure cycling and vibration.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the ELBOW,TUBE (P/N an833-3d)?
The AN833-3D is a 90-degree bulkhead elbow for aircraft fluid systems with 37-degree flared tube connections on both sides. This fitting passes through structural bulkheads while changing line direction, commonly used in fuel, hydraulic, and oil system routing.
Does the an833-3d meet AN/MS/NAS aviation specifications?
Aircraft hardware is manufactured to military and aviation specifications. The ELBOW,TUBE conforms to its applicable AN (Air Force-Navy), MS (Military Standard), or NAS (National Aerospace Standard) specification. Contact us for specific specification details.
What material is the an833-3d manufactured from?
Aviation hardware is available in various materials including cadmium-plated steel, stainless steel, aluminum alloy, and titanium depending on the application. Contact us for material certification and specifications for the an833-3d.
Can I order the an833-3d in custom quantities?
Yes, we sell hardware in various quantities from single units to bulk lots. The ELBOW,TUBE is available in: New Surplus. Submit an RFQ for volume pricing or call (904) 998-9101 for quantity availability.
